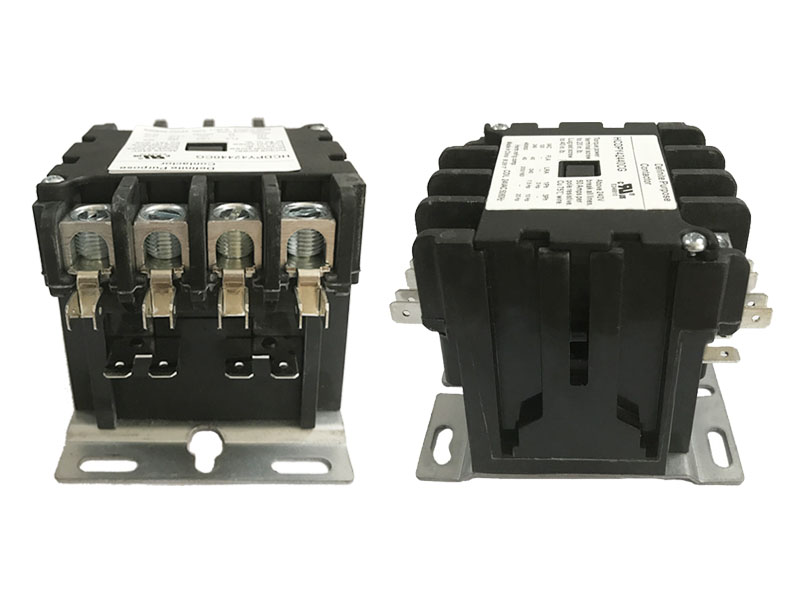

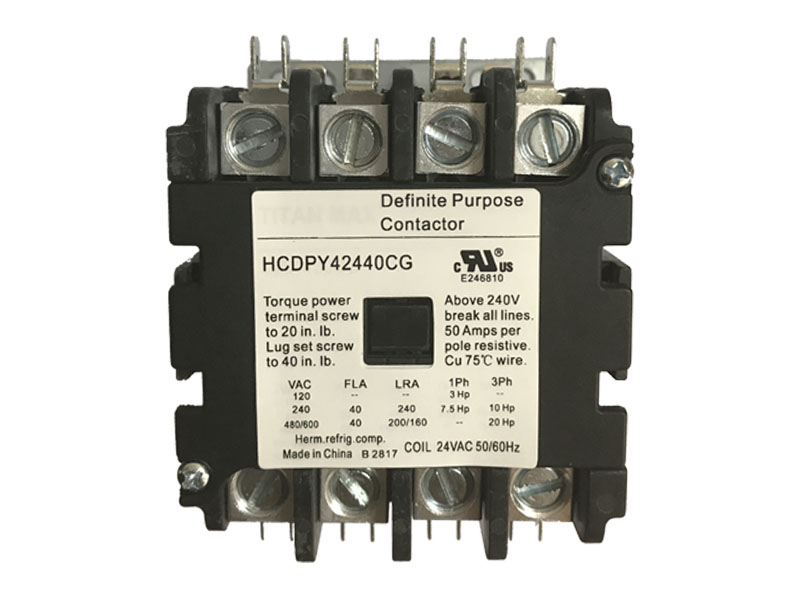

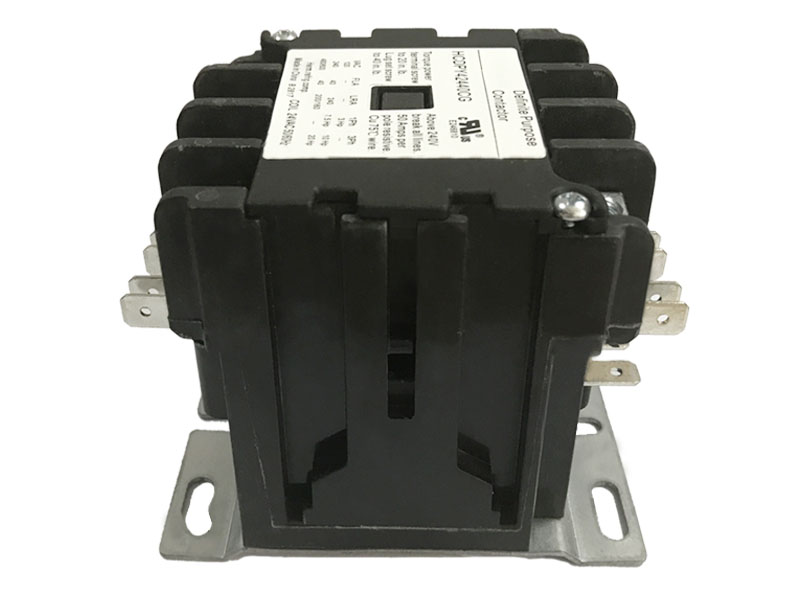

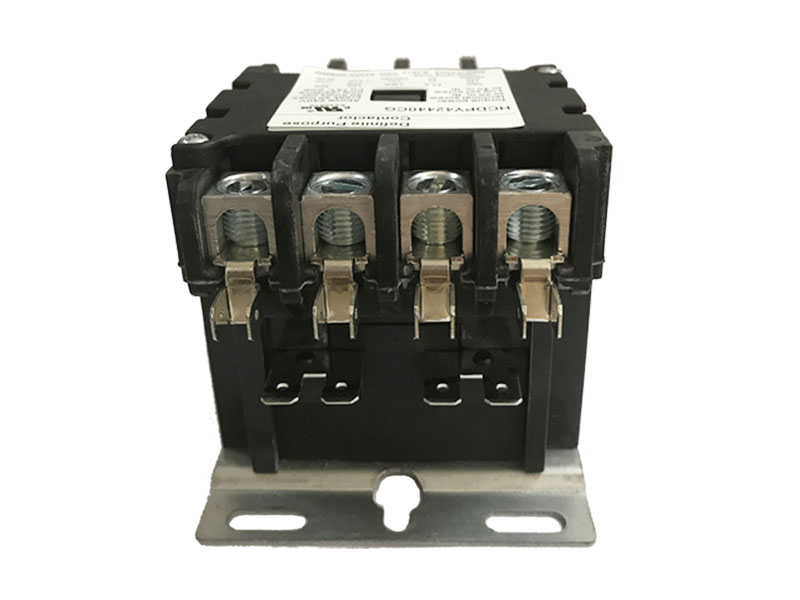

HCDP SERIES Definite Purpose Contactor - 4 POLE - HCDPY424040

Products

Home - Products - 4 POLE

Products Details

Product name:

HCDPY424040

Product Catalog:

4 POLE

OnLine Service:

Product Details	Online Inquiry

Products Application:

HCDP series Definite Purpose Contactors are suitable for commercial applications including air conditioners, refrigeration, resistive heating, lighting and many other installations where a low cost, high performance contactor is needed. These devices offer flexibility and are designed to meet or exceed electrical and mechanical requirements as defined by Definite Purpose Contactors standard of UL/CSA.

Products Details:

FLA	40

Poles	4
Resistive Amps	50
Coil Voltage	240
Hertz	50/60
Locked Rotor Amps 240/480/600	240/200/160
Electrical Contact Ratings:20A-90A electrical coil ratings:24-600V life rating,100,000&250,000 cycle options.
Options:1,2,3,4 pole fits 24,120,240 and 480 VAC coils wide range of electrical ratings screw, box or pressure plate connections NEMA mounting base. NO/NC end switch kits.
Terminations:#10-32 screw - 20, 25 & 30 FLA Models, Box Lug - 40, 50, 60, 75 & 90 FLA Models
Temperature Range:- 40°F to + 150° F / - 40°C to + 65° C
Replaces: Sieme/42CF25AGBCA,Cutler-Hammer/C25ENF440B,Hartland Controls/HCCY4XU04CJ303

Specification:

MODEL	FLA(A)	LRA(A)	LRA(A)	LRA(A)	LRA(A)	Phase	Resistive AMPS RATING
		480Vac	600Vac	277Vac	240Vac	/	277vac
HCDP-1.5P	20	100	80	120	120	1	30
	25	125	100	150	150	1	35
	30	150	120	180	180	1	40
	40	200	160	240	240	1	50
HCDP-2P	20	100	80	120	120	1	30
	25	125	100	150	150	1	35
	30	150	120	180	180	1	40
	40	200	160	240	240	1	50
	50	240	200	240	300	3	65
	60	300	240	240	360	3	75
	75	300	-	300	450	3	90
	90	360	-	360	540	3	120
HCDP-3P	20	100	80	120	120	3	30
	25	125	100	150	150	3	35
	30	150	120	180	180	3	40
	40	200	160	240	240	3	50
	50	240	200	240	300	3	65
	60	300	240	240	360	3	75
	75	300	-	300	450	3	90
	90	360	-	360	540	3	120
HCDP-4P	20	100	80	120	120	3	30
	25	125	100	150	150	3	35
	30	150	120	180	180	3	40
	40	200	160	240	240	3	50
Mechanical Life:1, 000, 000 Times						Electrical Life:250, 000 Times
Certificate:UL
