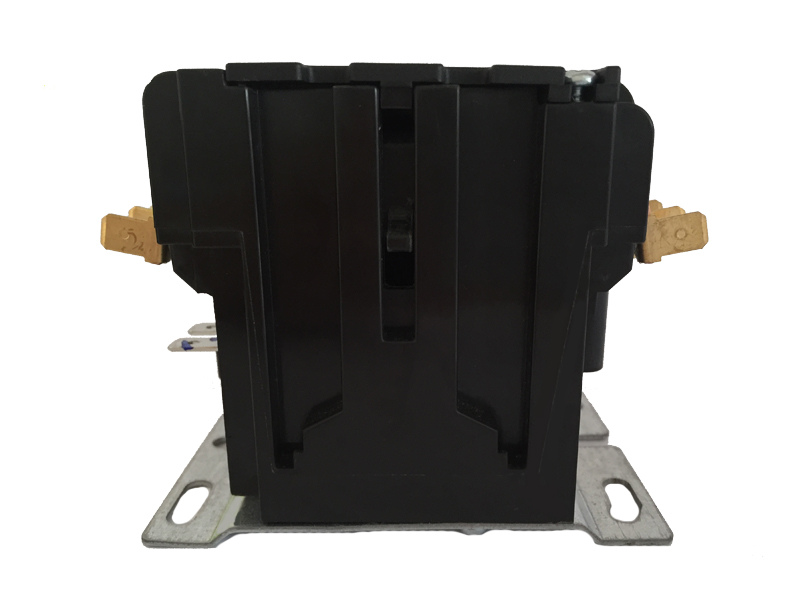

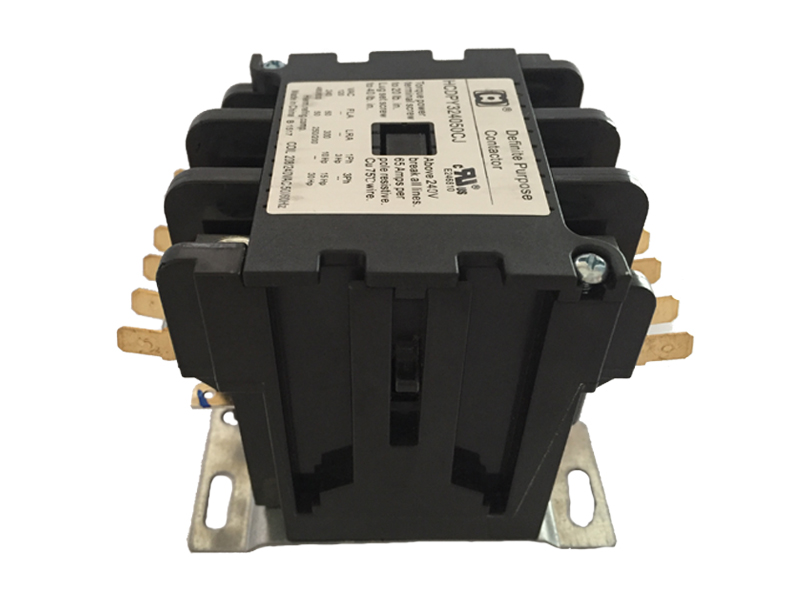

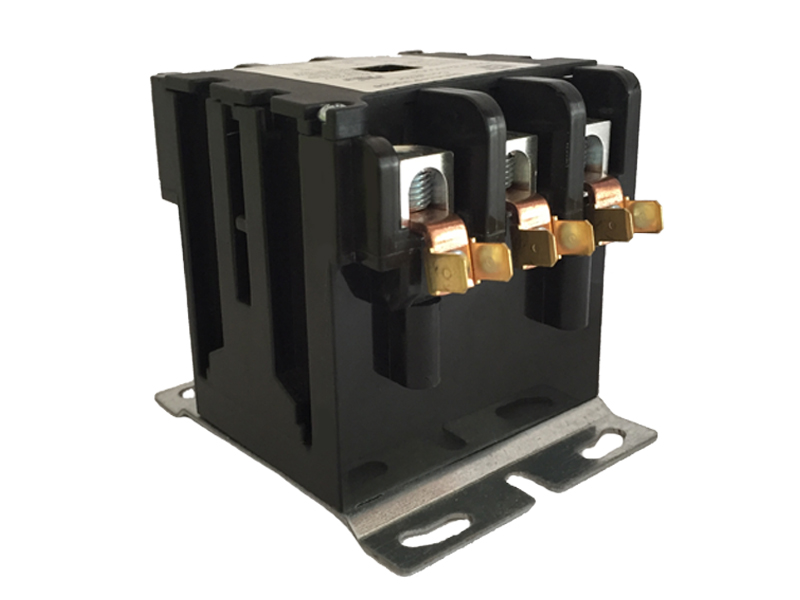

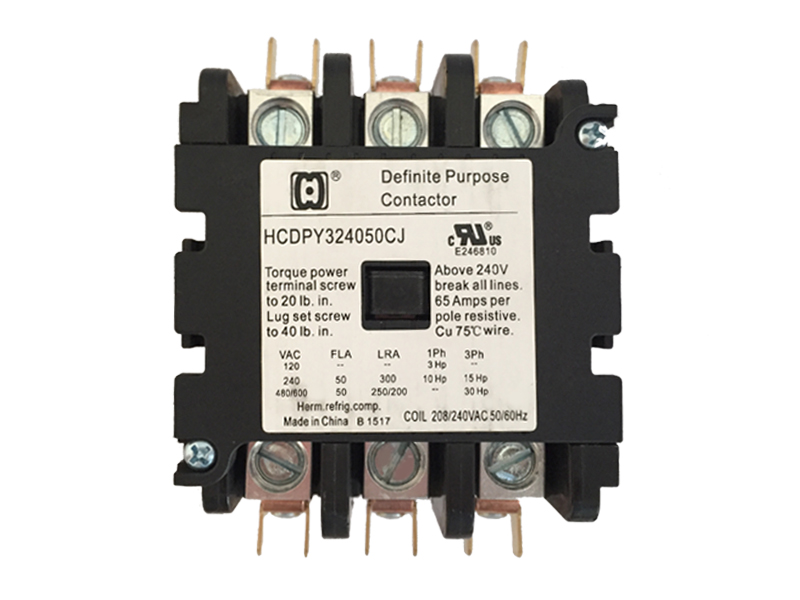

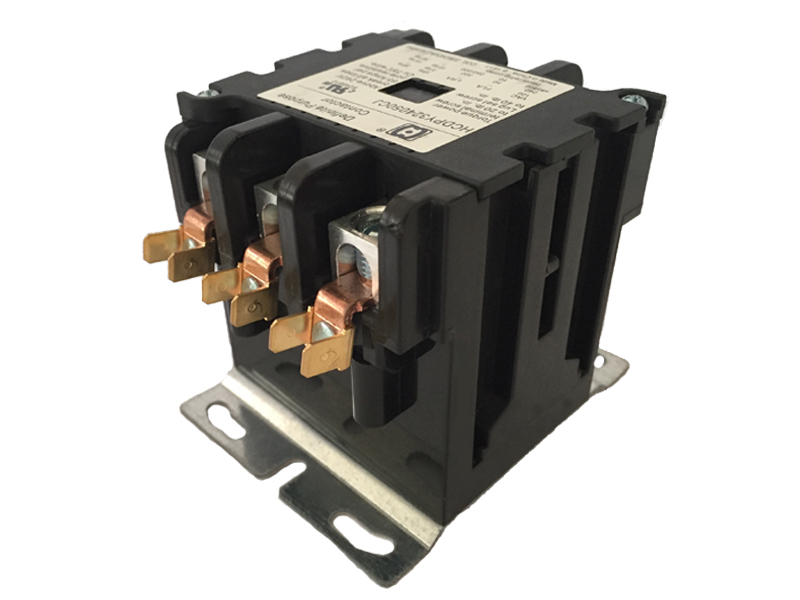

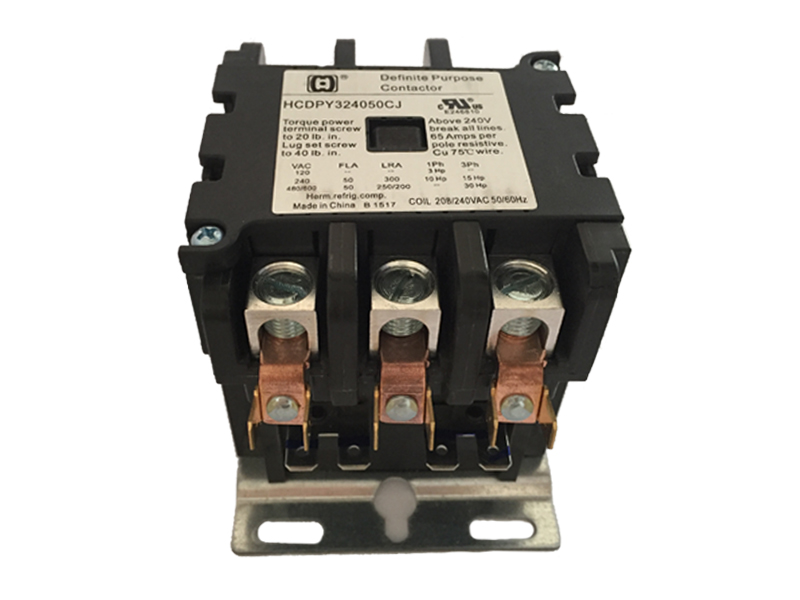

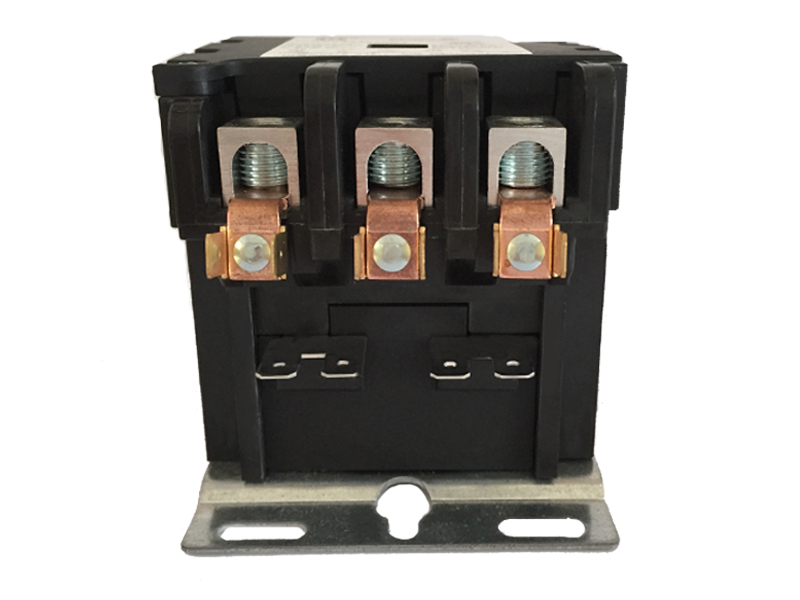

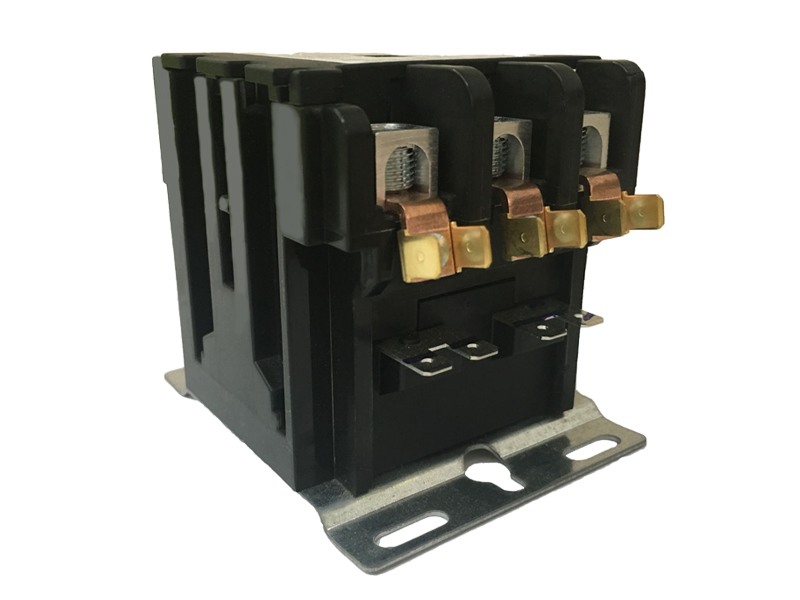

HCDP SERIES Definite Purpose Contactor - 3 POLE - HCDPY32460

Products

Home - Products - 3 POLE

Products Details

Product name:

HCDPY32460

Product Catalog:

3 POLE

OnLine Service:

Product Details	Online Inquiry

Products Application:

HCDP series Definite Purpose Contactors are suitable for commercial applications including air conditioners, refrigeration, resistive heating, lighting and many other installations where a low cost, high performance contactor is needed. These devices offer flexibility and are designed to meet or exceed electrical and mechanical requirements as defined by Definite Purpose Contactors standard of UL/CSA.

Products Details:

FLA	60

Poles	3
Resistive Amps	70
Coil Voltage	24
Hertz	50/60
Locked Rotor Amps 240/480/600	360/300/240
Electrical Contact Ratings:20A-90A electrical coil ratings:24-600V life rating,100,000&250,000 cycle options.
Options:1,2,3,4 pole fits 24,120,240 and 480 VAC coils wide range of electrical ratings screw, box or pressure plate connections NEMA mounting base. NO/NC end switch kits.

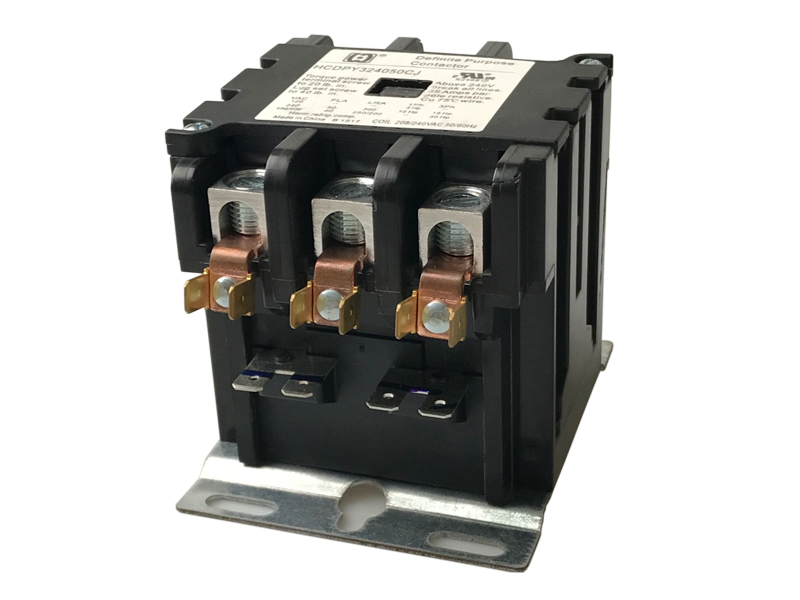

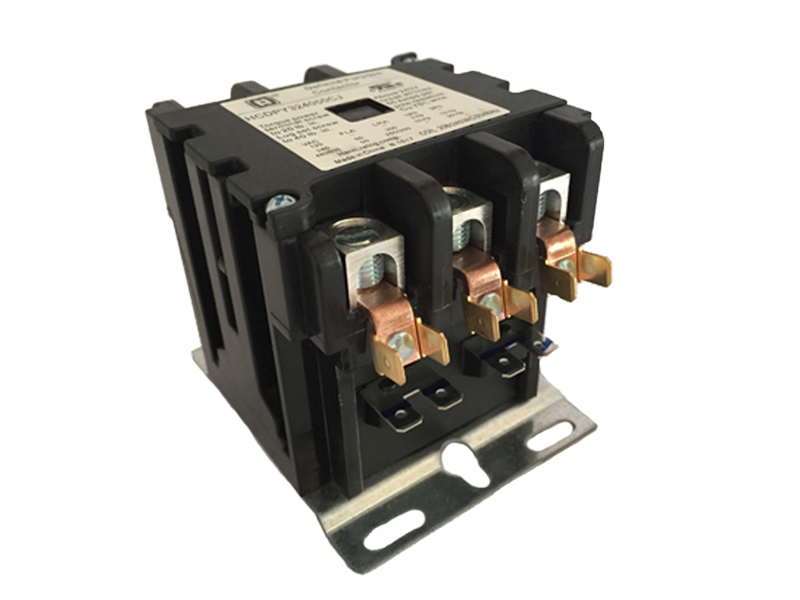

Terminations:#10-32 screw - 20, 25 & 30 FLA Models, Box Lug - 40, 50, 60, 75 & 90 FLA Models
Temperature Range:- 40°F to + 150° F / - 40°C to + 65° C
Replaces: Furnas/42EF35AJ,Industry No./61470.

Specification:

MODEL	FLA(A)	LRA(A)	LRA(A)	LRA(A)	LRA(A)	Phase	Resistive AMPS RATING
		480Vac	600Vac	277Vac	240Vac	/	277vac
HCDP-1.5P	20	100	80	120	120	1	30
	25	125	100	150	150	1	35
	30	150	120	180	180	1	40
	40	200	160	240	240	1	50
HCDP-2P	20	100	80	120	120	1	30
	25	125	100	150	150	1	35
	30	150	120	180	180	1	40
	40	200	160	240	240	1	50
	50	240	200	240	300	3	65
	60	300	240	240	360	3	75
	75	300	-	300	450	3	90
	90	360	-	360	540	3	120
HCDP-3P	20	100	80	120	120	3	30
	25	125	100	150	150	3	35
	30	150	120	180	180	3	40
	40	200	160	240	240	3	50
	50	240	200	240	300	3	65
	60	300	240	240	360	3	75
	75	300	-	300	450	3	90
	90	360	-	360	540	3	120
HCDP-4P	20	100	80	120	120	3	30
	25	125	100	150	150	3	35
	30	150	120	180	180	3	40
	40	200	160	240	240	3	50
Mechanical Life:1, 000, 000 Times						Electrical Life:250, 000 Times
Certificate:UL

WHY CHOOSE US:

Fast delivery
Competitive price
Good after-service
OEM/ODM available
Continuance service and support
Quality reliability and long product life.
18-year manufacturing &export experience
Attending more than 5 kinds of international exhibition per year
Do business with world famous company

FAQ:
Q1: Can I get a sample for testing?
A: Yes, warm-welcomed for sample purchase.
Q2: Can I print my logo on the products?
A: Yes, OEM and ODM are available.
Q3: How can I get the after-service?
A: Full-refund policy in case of quality problem.
Q4: Do you have inspection procedures for products?
A: Our products 100% self-inspection and testing before packing.
Q5: How about delivery time of the order?
A: 15-20 days after deposit.
Q6: How about payment terms?
A: 30% deposit, the rest payment balance against B/L copy .
