Products Application:

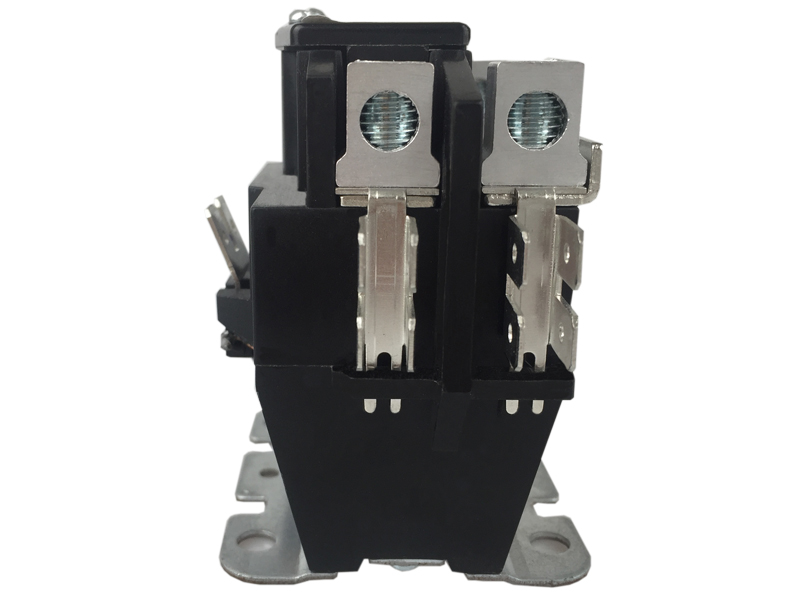

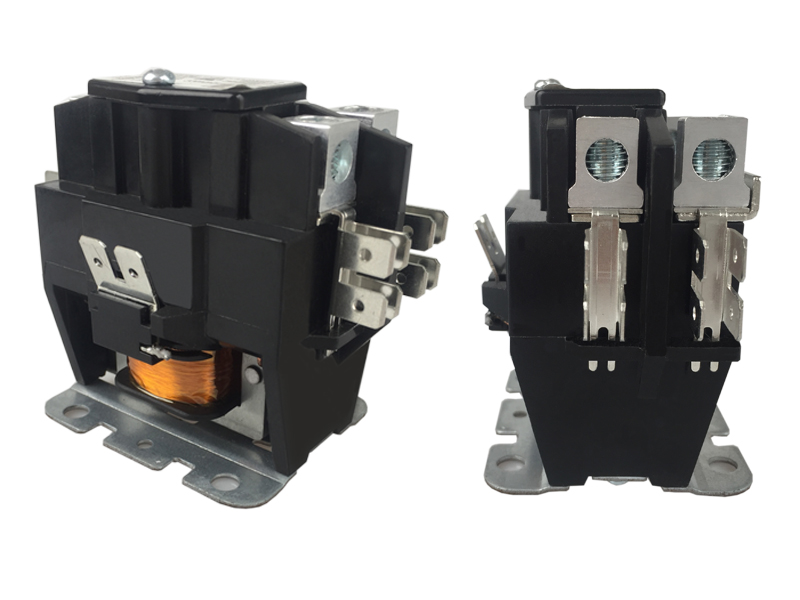

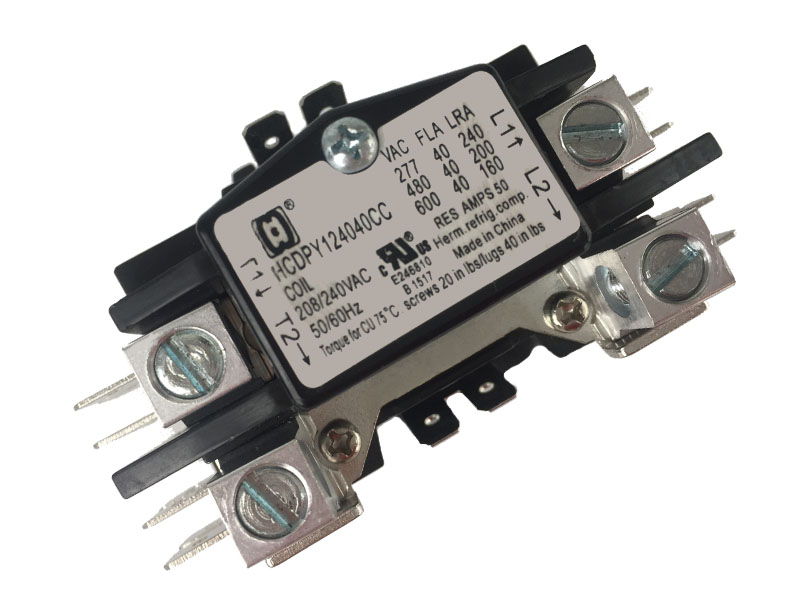

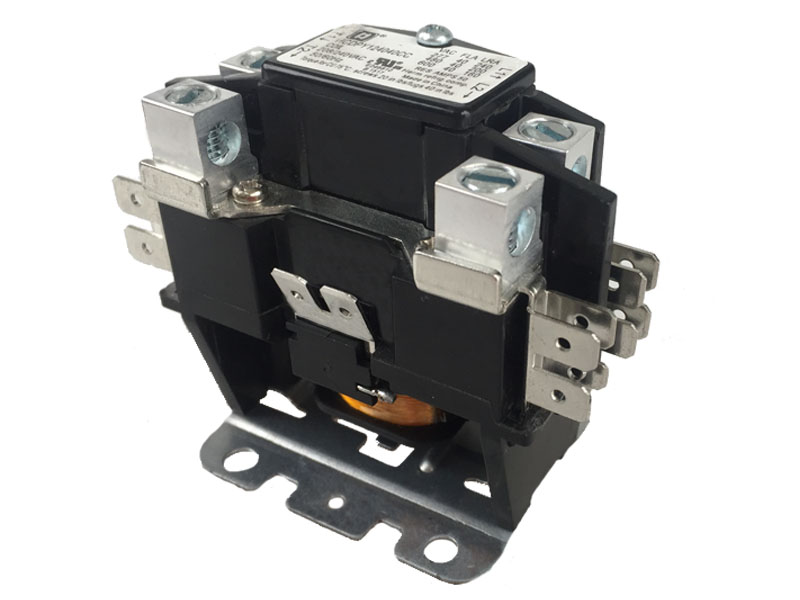

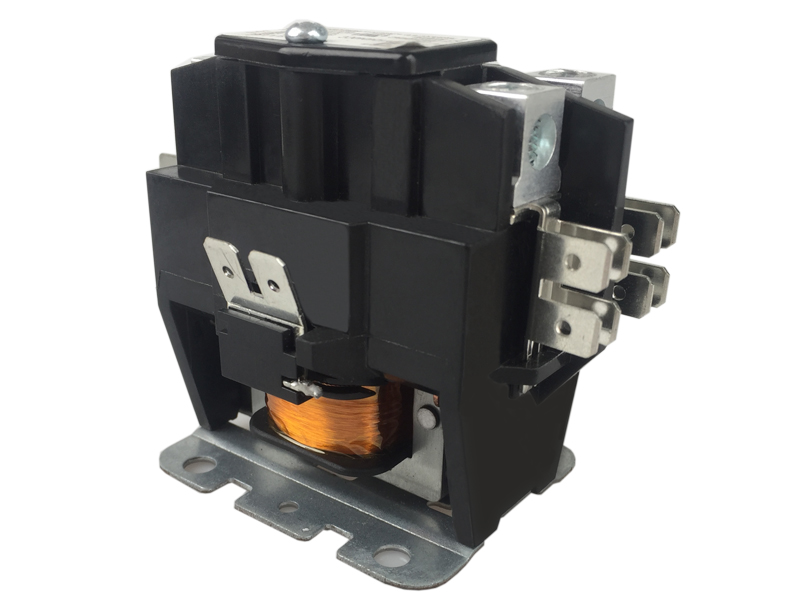

HCDP series Definite Purpose Contactors are suitable for commercial applications including air conditioners, refrigeration, resistive heating, lighting and many other installations where a low cost, high performance contactor is needed. These devices offer flexibility and are designed to meet or exceed electrical and mechanical requirements as defined by Definite Purpose Contactors standard of UL/CSA.
Products Details:
|
FLA |
40 |
|
Poles |
1 |
|
Resistive Amps |
50 |
|
Coil Voltage |
120 |
|
Hertz |
50/60 |
|
Locked Rotor Amps 240/480/600 |
240/200/160 |
|
Electrical Contact Ratings:20A-90A electrical coil ratings:24-600V life rating,100,000&250,000 cycle options. |
|
|
Options:1,2,3,4 pole fits 24,120,240 and 480 VAC coils wide range of electrical ratings screw, box or pressure plate connections NEMA mounting base. NO/NC end switch kits. |
|
|
Terminations:#10-32 screw - 20, 25 & 30 FLA Models, Box Lug - 40, 50, 60, 75 & 90 FLA Models |
|
|
Temperature Range:- 40°F to + 150° F / - 40°C to + 65° C |
|
|
Replaces:Cutler-Hammer/C25ANF140A,Hartland Controls/HCCY1NT04GG303 |
|
Specification:
|
MODEL |
FLA(A) |
LRA(A) |
LRA(A) |
LRA(A) |
LRA(A) |
Phase |
Resistive AMPS RATING |
|
|
|
480Vac |
600Vac |
277Vac |
240Vac |
/ |
277vac |
|
HCDP-1.5P |
20 |
100 |
80 |
120 |
120 |
1 |
30 |
|
25 |
125 |
100 |
150 |
150 |
1 |
35 |
|
|
30 |
150 |
120 |
180 |
180 |
1 |
40 |
|
|
40 |
200 |
160 |
240 |
240 |
1 |
50 |
|
|
HCDP-2P |
20 |
100 |
80 |
120 |
120 |
1 |
30 |
|
25 |
125 |
100 |
150 |
150 |
1 |
35 |
|
|
30 |
150 |
120 |
180 |
180 |
1 |
40 |
|
|
40 |
200 |
160 |
240 |
240 |
1 |
50 |
|
|
50 |
240 |
200 |
240 |
300 |
3 |
65 |
|
|
60 |
300 |
240 |
240 |
360 |
3 |
75 |
|
|
75 |
300 |
- |
300 |
450 |
3 |
90 |
|
|
90 |
360 |
- |
360 |
540 |
3 |
120 |
|
|
HCDP-3P |
20 |
100 |
80 |
120 |
120 |
3 |
30 |
|
25 |
125 |
100 |
150 |
150 |
3 |
35 |
|
|
30 |
150 |
120 |
180 |
180 |
3 |
40 |
|
|
40 |
200 |
160 |
240 |
240 |
3 |
50 |
|
|
50 |
240 |
200 |
240 |
300 |
3 |
65 |
|
|
60 |
300 |
240 |
240 |
360 |
3 |
75 |
|
|
75 |
300 |
- |
300 |
450 |
3 |
90 |
|
|
90 |
360 |
- |
360 |
540 |
3 |
120 |
|
|
HCDP-4P |
20 |
100 |
80 |
120 |
120 |
3 |
30 |
|
25 |
125 |
100 |
150 |
150 |
3 |
35 |
|
|
30 |
150 |
120 |
180 |
180 |
3 |
40 |
|
|
40 |
200 |
160 |
240 |
240 |
3 |
50 |
|
|
Mechanical Life:1, 000, 000 Times |
Electrical Life:250, 000 Times |
||||||
|
Certificate:UL |
|||||||
WHY CHOOSE US:
Fast delivery
Competitive price
Good after-service
OEM/ODM available
Continuance service and support
Quality reliability and long product life.
18-year manufacturing &export experience
Attending more than 5 kinds of international exhibition per year
Do business with world famous company
FAQ:
Q1: Can I get a sample for testing?
A: Yes, warm-welcomed for sample purchase.
Q2: Can I print my logo on the products?
A: Yes, OEM and ODM are available.
Q3: How can I get the after-service?
A: Full-refund policy in case of quality problem.
Q4: Do you have inspection procedures for products?
A: Our products100% self-inspection and testing before packing.
Q5: How about delivery time of the order?
A: 15-20 days after deposit.
Q6: How about payment terms?
A: 30% deposit, the rest payment balance against B/L copy .
