Definite purpose contactors are ideal for heating, air conditioning, refrigeration, data processing, and food service equipment. Compact 1 and 2 pole contactors are available along with full size 2, 3, and 4-pole devices.
The SA series Contactors are designed for OEM and end user motor control applications that require a cost-effective, reliable contactor.
® contactors meet the stringent safety and performance standards.
They feature quick connect terminals and binder head screws for easy wiring. Box lugs are standard on 40 ampere contactors and larger.
Silver Metal Oxide contacts are used to guarantee dependable electrical performance over the life of the product. The electro-magnetic coil is specially designed to reduce power requirements in the user control system.
Features:
Premium Silver Alloy contacts designed for long lifeShock-resistant actuator arms provide mechanical durability Durable Molded Plastic Housing Industry standard mounting plates Compact Design, easy to install .
Options:
1, 2, 3 and 4 Pole Configurations 24, 120, 240 and 480 VAC Coils Wide range of electrical ratings Screw, Box or Pressure Plate Connections NEMA mounting base

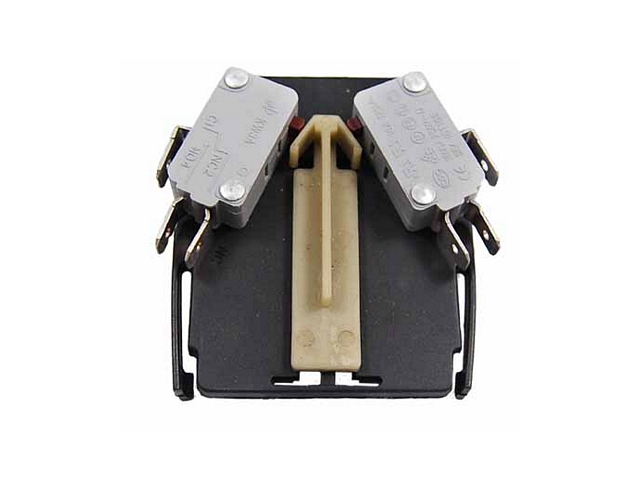

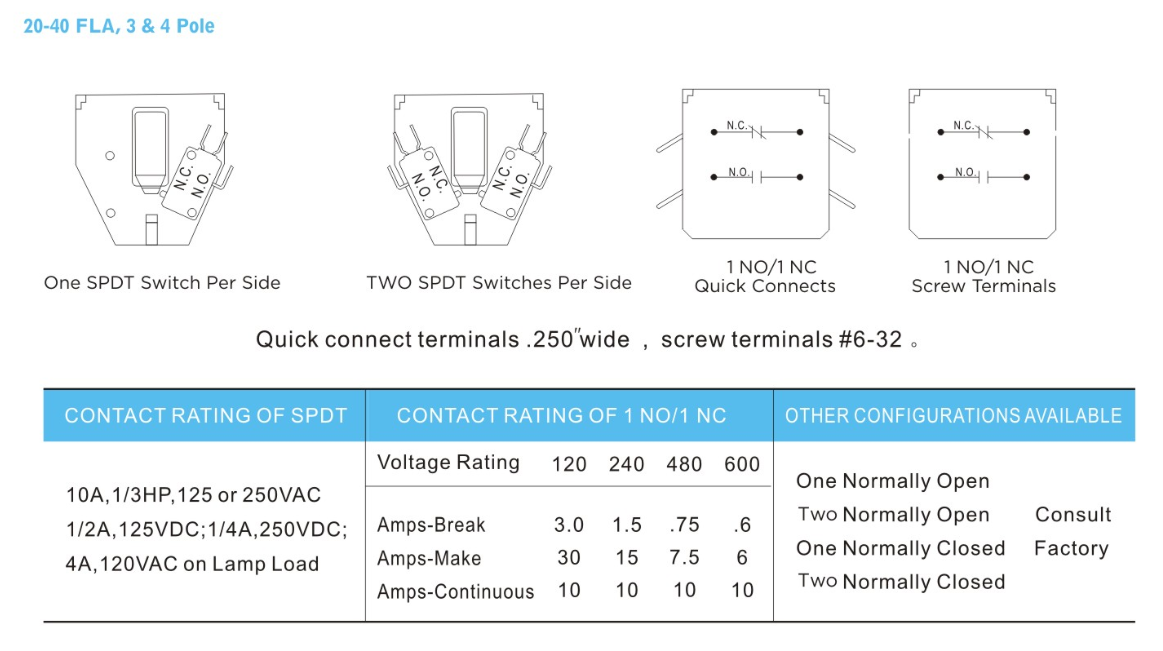

NO/NC End Switch Kits
Technical Specifications:
Electrical Contact Ratings: 20 to 90 Amps Electrical Coil Ratings: 24 to 600 VAC Life Rating: 100,000 & 250,000 Cycle Options.
Item Specifications
This Item Replaces
|
Hartland Controls
|
HCCY2C300VQ303
|
Designed & Built
The HECHENG ®contactors are engineered to with stand mechanical stress for the rated cycle life. The Commander Series not only meets the industry standard of 250k life cycles, but exceeds them over seven fold.
Premium materials and exceptional build means perfect contact, every time. We take pride in the reliability of our contactors – pride that we’re providing your products with the power they need. Match that reliability with our competitive costs and we know our contactors are the right solution for your system.
