With life cycles exceeding 250,000 electrical and 1,000,000 mechanical, the HCDP series of definite purpose contactors and auxiliary switches are built to offer you maximum dependability. It’s an ideal one-for-one replacement for the Furnas DP contactor, and no matter which way it’s mounted, its performance remains strong. It also meets the ARI 780/790 standard . ®
High arc-resistant phenolic resin material hold stationary terminals,positions actuator, and magnet/coil assembly.It has much stronger endurance and insulating ability than normal contactors .
The internal construction of the HCDP series is manufactured from engineered compounds to provide excellent mechanical life in the most demanding applications.
Advantage:

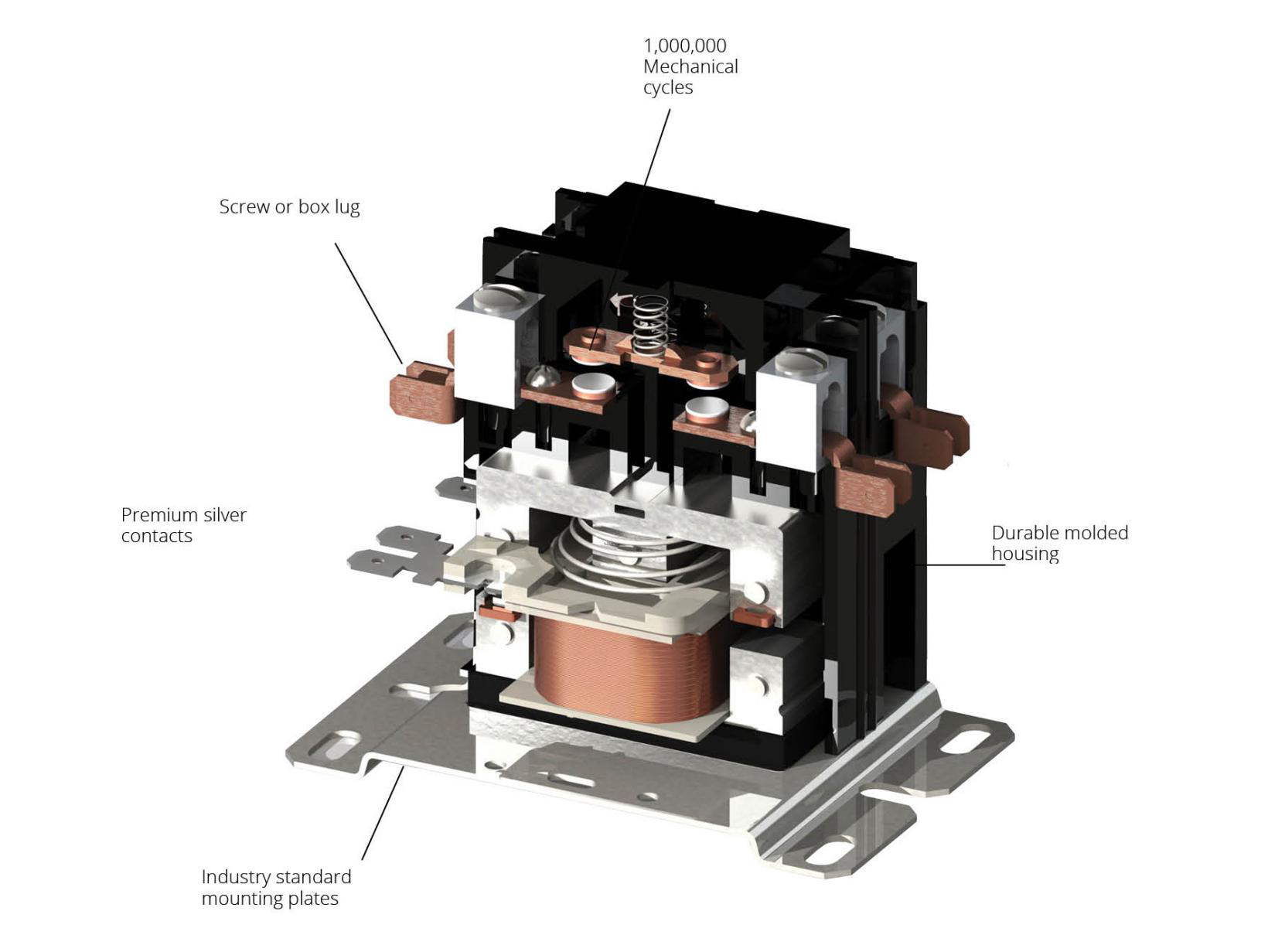

Premium Silver Alloy contacts designed for long lifeShock-resistant actuator arms provide mechanical durability Durable Molded Plastic Housing Industry standard mounting plates Compact Design, easy to install .
Options:
1, 2, 3 and 4 Pole Configurations 24, 120, 240 and 480 VAC Coils Wide range of electrical ratings Screw, Box or Pressure Plate Connections NEMA mounting base

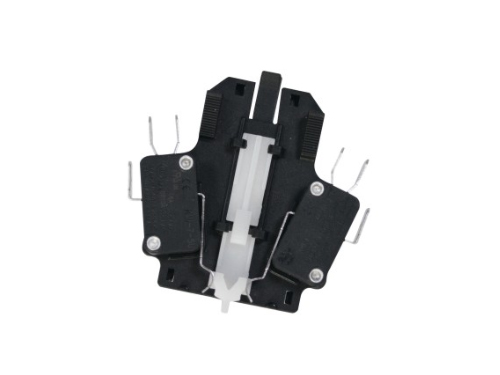

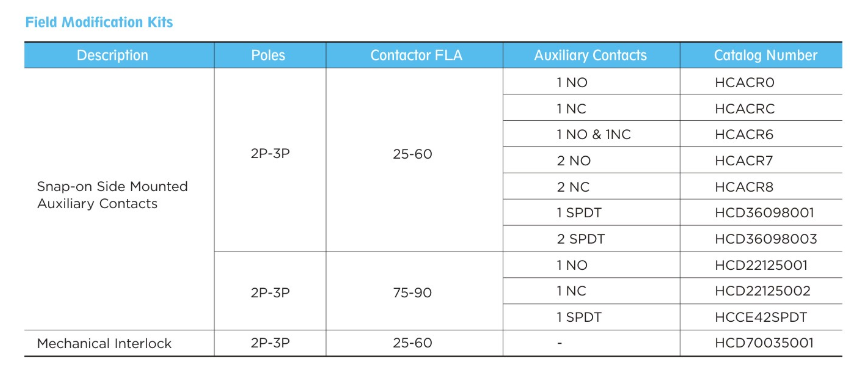

NO/NC End Switch Kits
Technical Specifications:
Electrical Contact Ratings: 20 to 90 Amps Electrical Coil Ratings: 24 to 600 VAC Life Rating: 100,000 & 250,000 Cycle Options
APPLICATIONS
Designed ideally for the HVACR industry, the most common applications of our contactors
are found in Refrigeration, Air Conditioning and Heating.
Other applications include:
• Food service equipment
• Vending machines
• Compressors
• Pumps
• Cranes
• Hoists
• Welding machines
• Power supplies
• Lighting
Item Specifications
Designed & Built
HECHENG
®contactors are engineered to with stand mechanical stress for the rated cycle life. The Commander Series not only meets the industry standard of 250k life cycles, but exceeds them over seven fold.
Premium materials and exceptional build means perfect contact, every time. We take pride in the reliability of our contactors – pride that we’re providing your products with the power they need. Match that reliability with our competitive costs and we know our contactors are the right solution for your system.
